TSRVBoxScheme is a class defining a visual appearance of rectangular areas of different controls.
This is a class of items in the following collection:
•TSRVSkinManager.Skins[i].BoxSchemes;
Unit SRVSkinManager.
Syntax
TSRVBoxScheme = class(TCollectionItem)
TObject
TPersistent
TCollectionItem
Name: TRVUnicodeString – a name of this scheme. This text is displayed at design time when editing collections.
Other properties define indices in TSRVSkinManager.Skins[i].Elements collection. All these properties are Integers, their default value is -1.

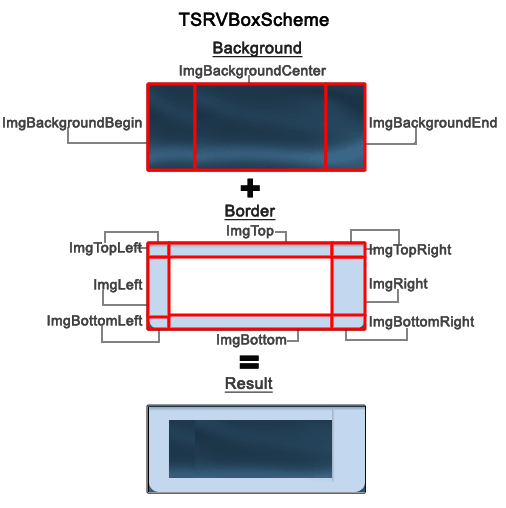

Background:
•ImgBackgroundBegin – left side;
•ImgBackgroundEnd – right side;
•ImgBackgroundCenter – middle of background (stretched).
Border:
•ImgLeft, ImgRight, ImgTop, ImgBottom – left/right/top/bottom sides (stretched);
•ImgTopLeft, ImgTopRight, ImgBottomLeft, ImgBottomRight – corners.
